450A MEGA High Current Fuse (450A)

⭐ Key Features

•Product: ANM fuses, bolt auto fuses, time delay (slow blow), current 450A, 32V DC, replaces MEGA/AMG fuse.

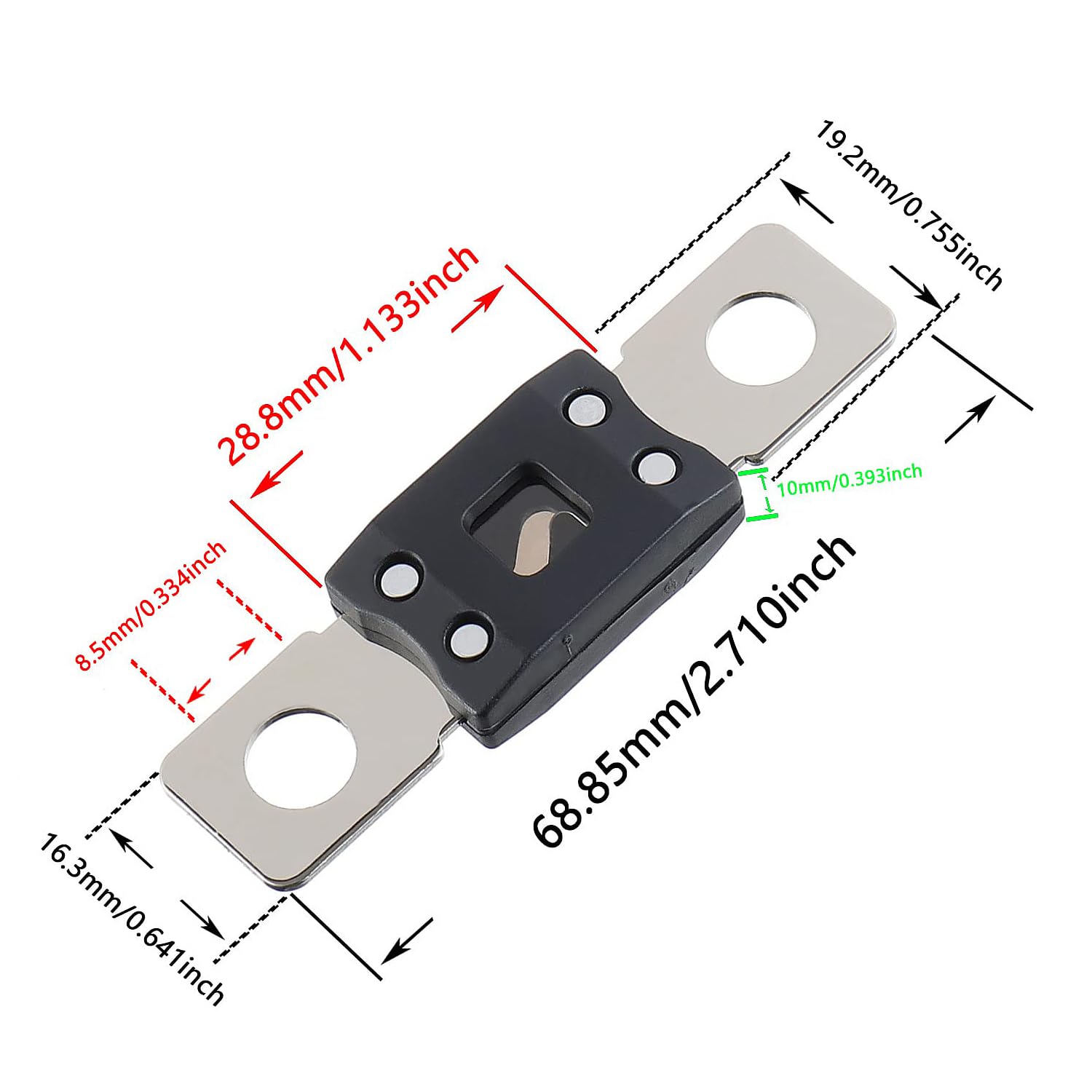

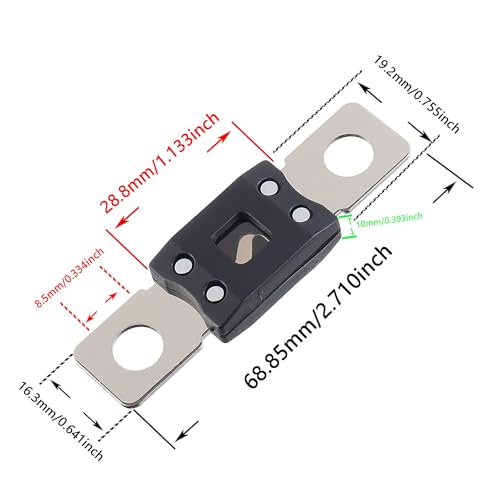

•Dimensions: 68.85 x 19.2 x 10 mm (L*W*H); Hole Spacing: 50.8mm; Hole Diameter: 8.5mm (M8)

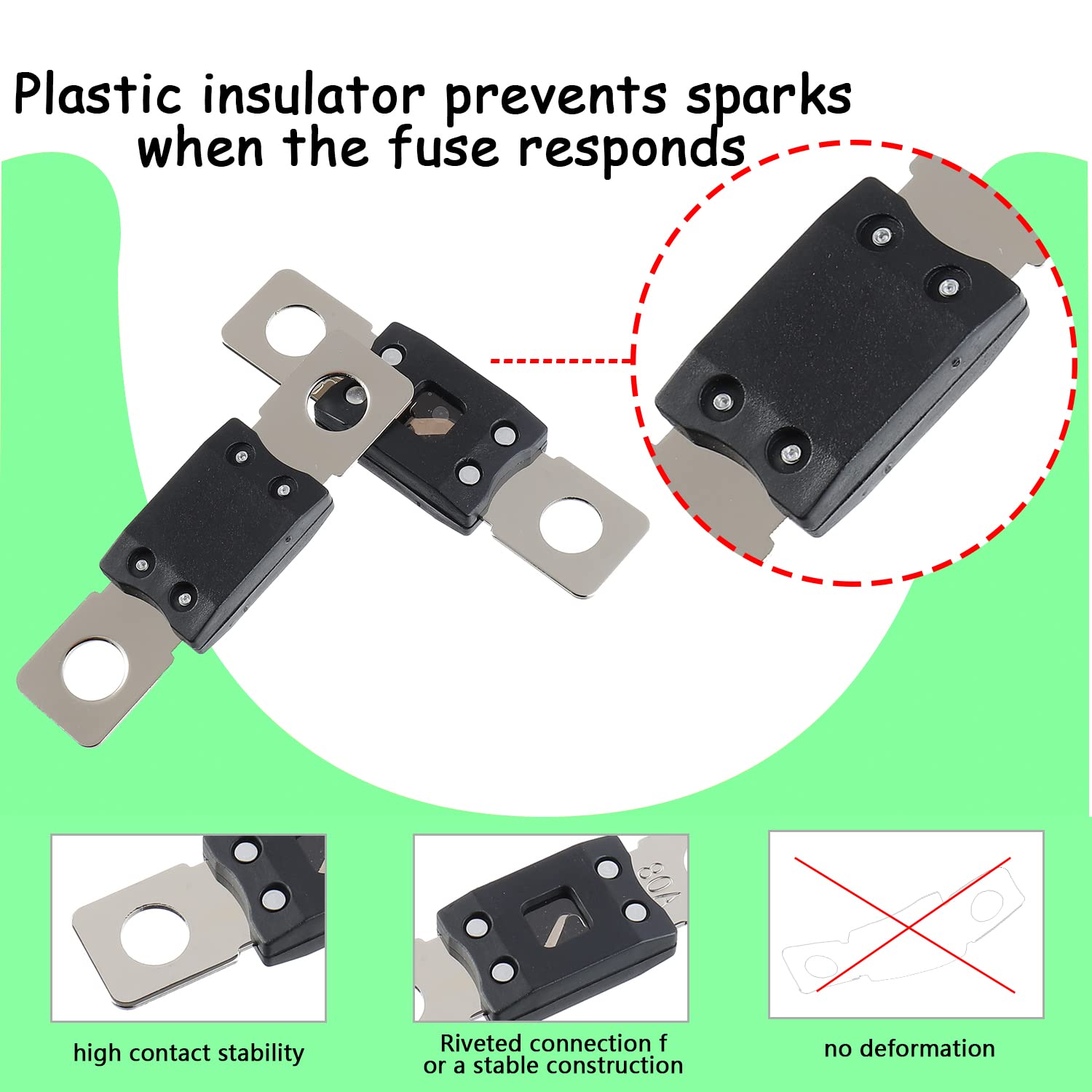

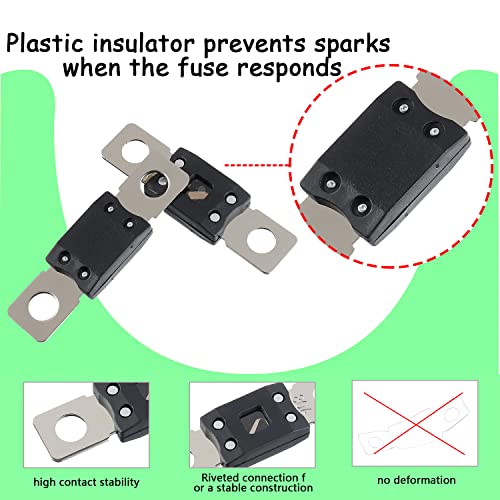

•Material: Copper alloy with integrated tin-plated heat sink. Riveted connection for a stable construction. Plastic insulator prevents sparks when the fuse responds.

•Function: Overload and short circuit protection. ANM car fuses provide time delay characteristics.

•Application: ANM bolt-on fuses are used in cars, trucks, agricultural machinery, construction vehicles, buses and caravans.

🛠️ Specifications

• Brand : SIGANDG
• Style : 450A
• Material : Plastic, Copper
• Unit : 2 Count
• Color : Black
• Included components : fuse
• Number of items : 1
• Type : FUSE
• Package dimensions : H: 0.4 / L: 2.9 / W: 1.4 (Weight: 0.04)

📋 Product Description

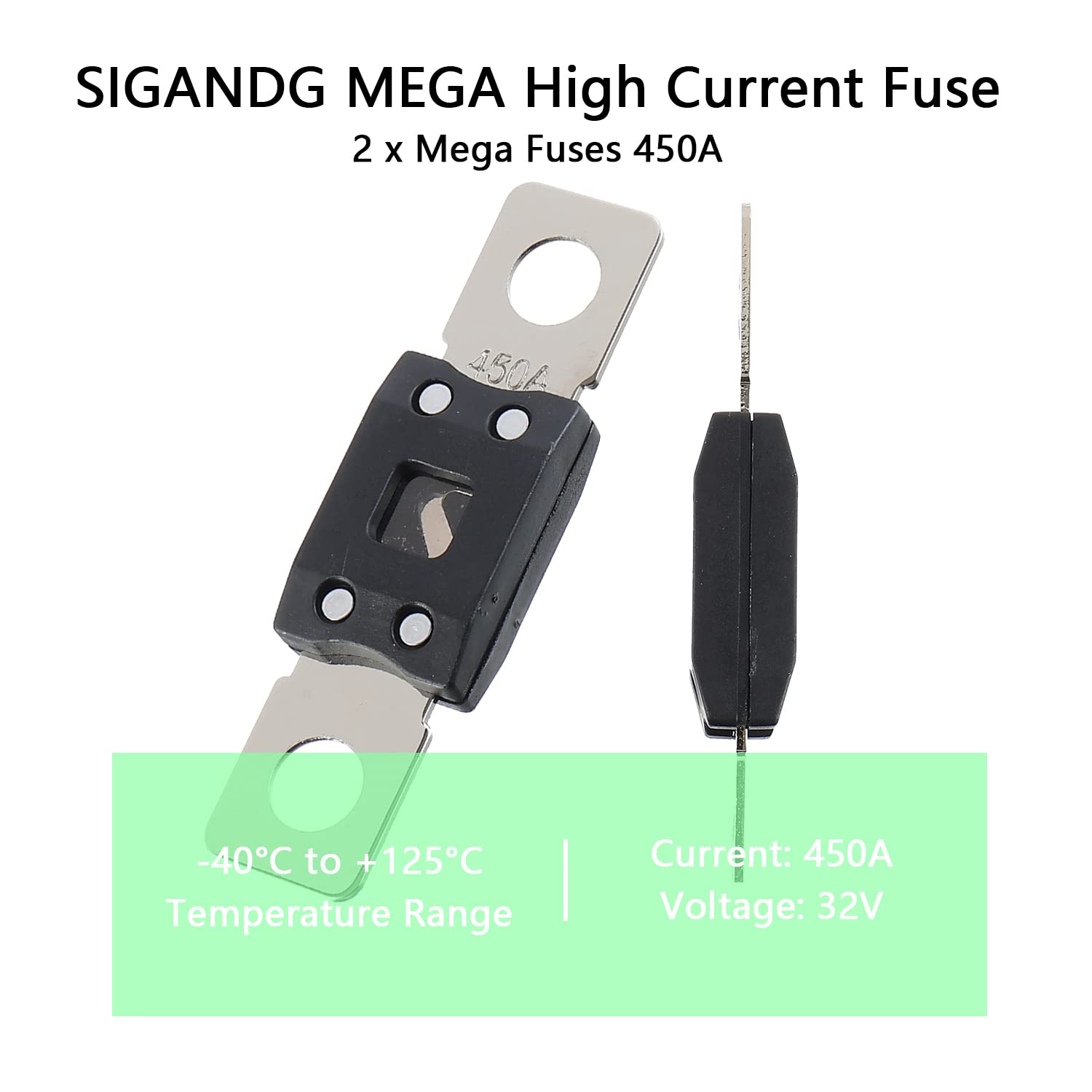

SIGANDG MEGA High Current Fuse Bolt-on Fuse AMG Fuse Type: Mega Fuse Current: 450A Voltage: 32V Temperature Range: -40°C to +125°C Standard: ISO 8820-5, RoHS Advantage: high contact stability, no deformation, high safety Match: can use with MEGA/ANM fuse holders Function ＆ Application: Used for overload and short circuit protection in high current circuits. Suitable for use as a fuse on the battery cable of voltage converters and inverters or even charge controllers with high charging currents. Installation: ANM Fuse can be installed on battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection. Package List: 2 x Mega Fuses 450A
