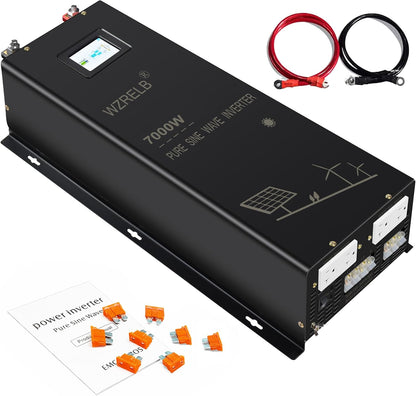

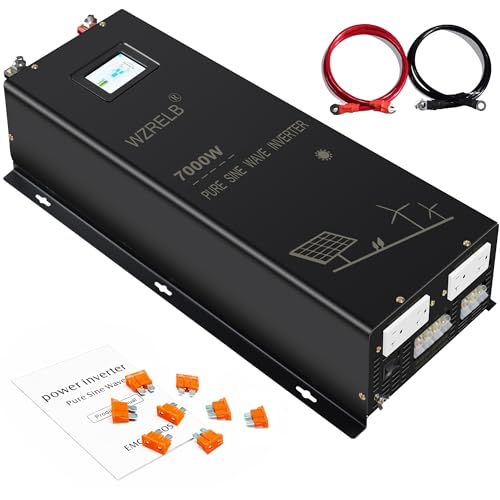

7000W Split Phase Pure Sine Wave Inverter
7000W Split Phase Pure Sine Wave Inverter
Regular price
$2,974.99
Sale price
$2,974.99
Regular price
Unit price
per
Shipping calculated at checkout.
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
Sub total
$2,974.99Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Description
Description
Key Features
- POWERFUL: 7000 watts continuous, 14000 watts peak power, 48 volt DC to 120V 240V AC split phase true sine wave inverter, built-in soft starter, high frequency design with high surge capability to power demanding loads like air conditioner, refrigerator, power tools, and more

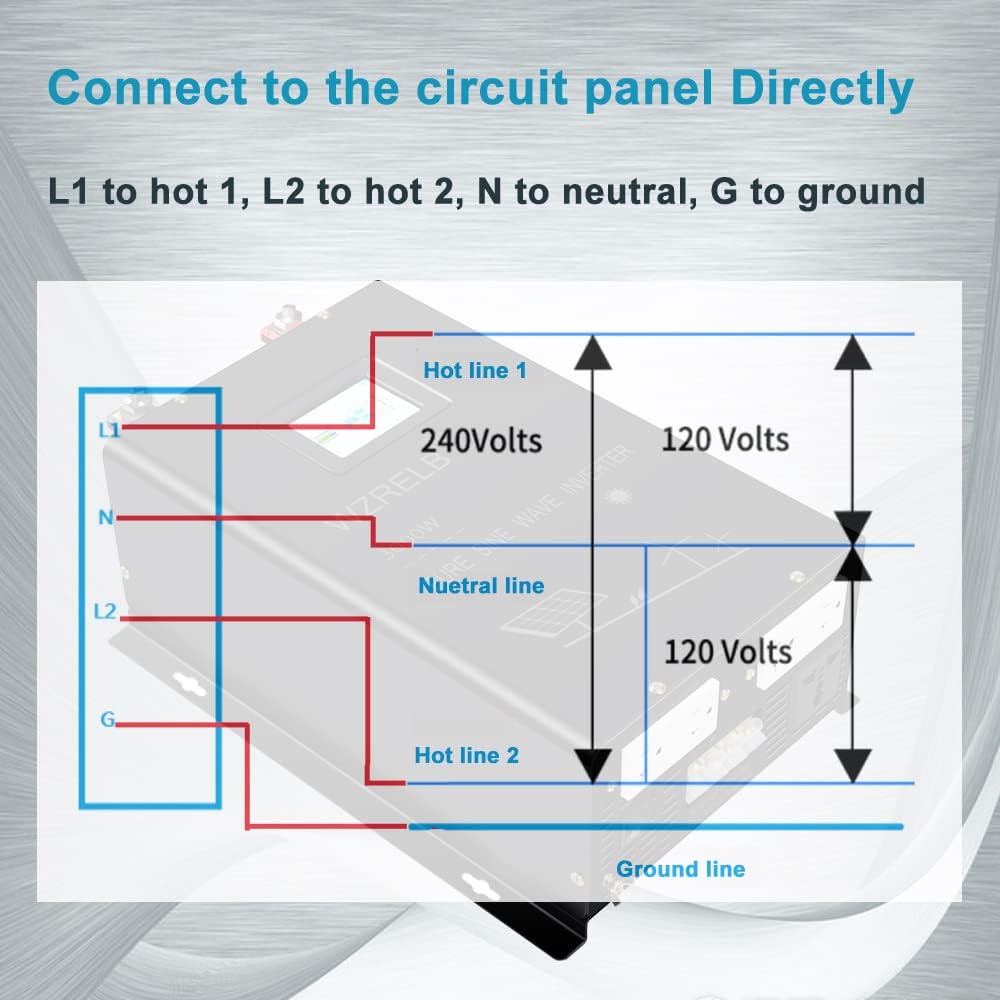

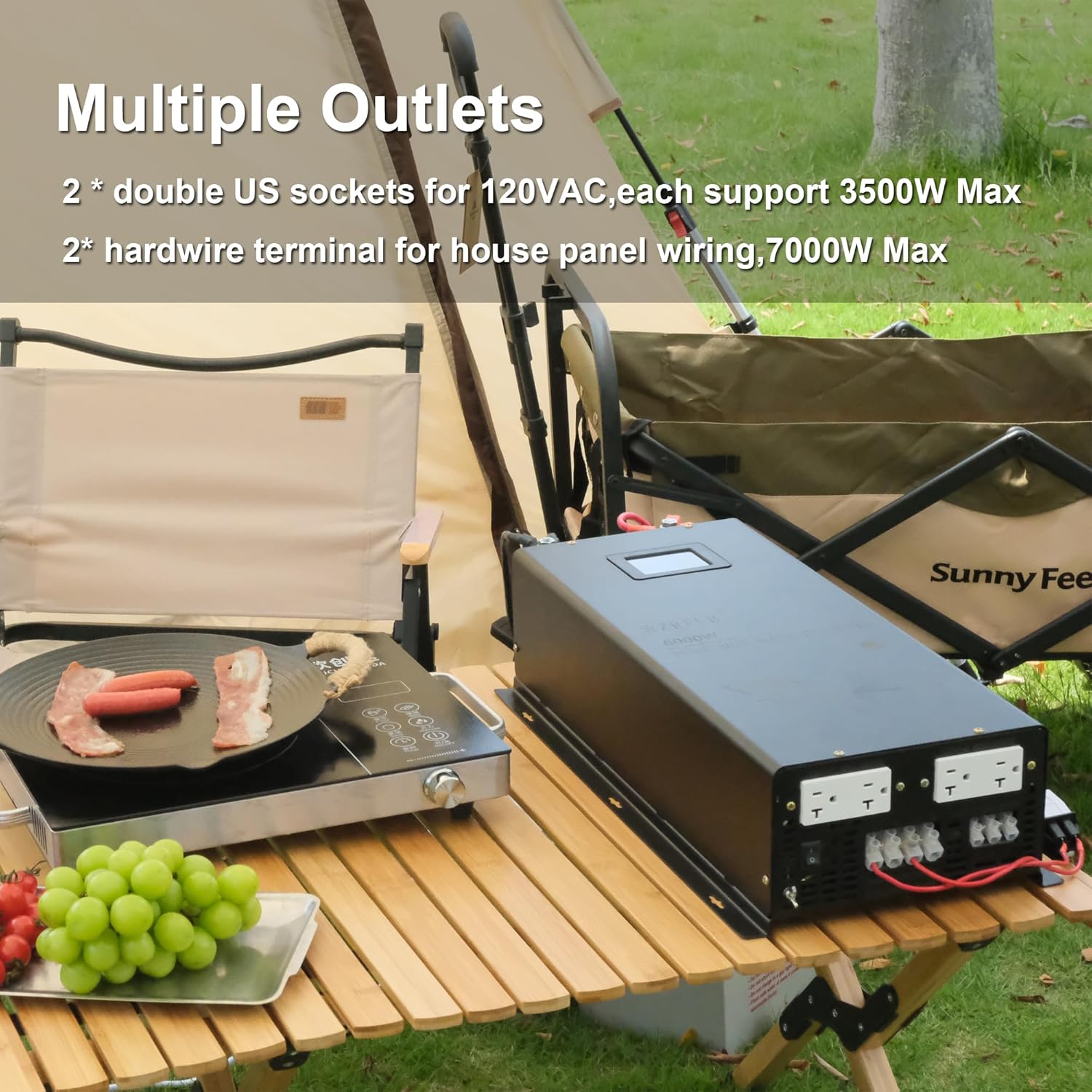

- FEATURES: 2 circuit 120v AC outputs with 4 AC outlets ,each circuit can support 3500W output at the same time ,one circuit 240VAC with max 7000W output ,one AC hardwire terminal with Multiple output (L1+L2=240V, L1+N=120V, L2+N=120V )

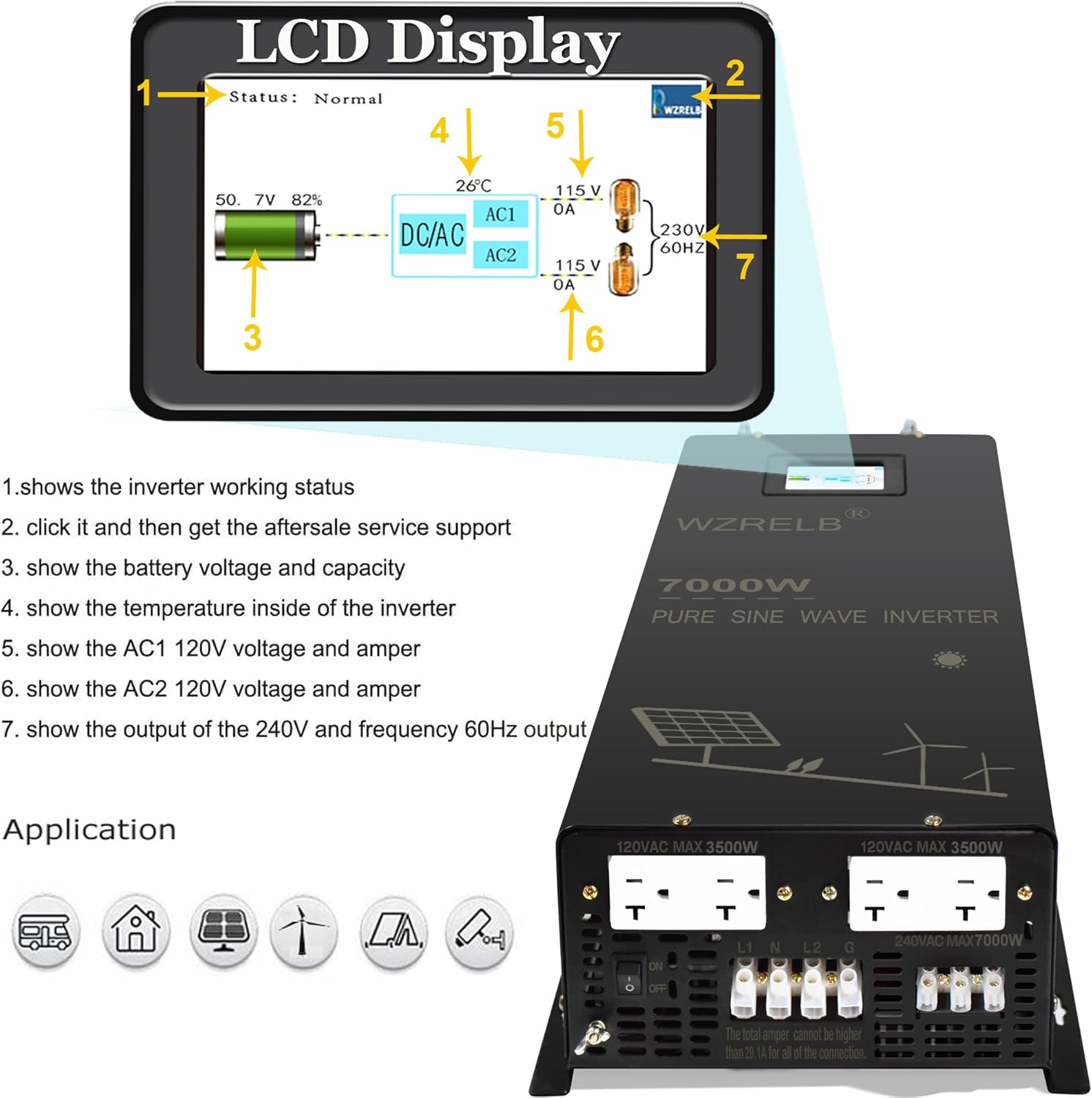

- Intelligent control: LCD display monitors battery status, working temperature, 120V 240V output voltage status, effective feedback battery, inverter, load working status
- PROTECTIONS: Temperature-controlled cooling fan, low and high voltage alarmutdown,multi-protections against overload, short circuit, over temperature, high voltage, low voltage, internally fused, battery reverse etc.
- APPLICATIONS: a must for off-grid live and Power Failure Emergency , compatible with AGM, gel, flooded, lead-acid and lithium-ion batteries, , ideal for home, cabin, mobile business, RV, trailer, semi-truck, boat, and more
Specifications
| Brand | WZRELB |
| Manufacturer | Yueqing Reliable Electric co.,ltd |
| Model | SPVC700048 |
| Color | Black |
| Size | Split Phase 7000W 48V |
| Product Type | POWER_INVERTER |

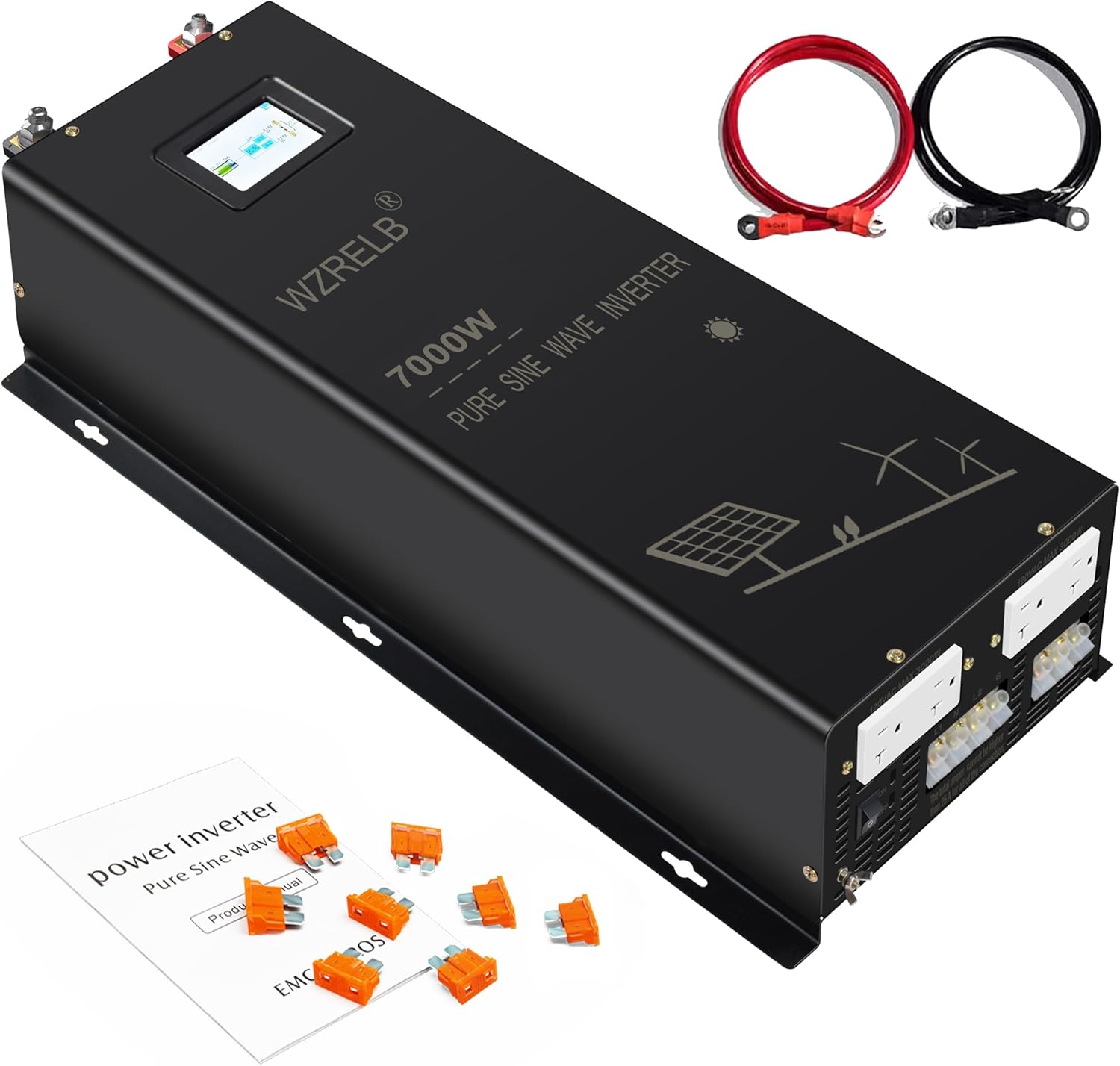

| Included Components | Inverter Cable, Fuse, 7000W inverter |
| Recommended Uses | Home |
| Item Type Keyword | vehicle-power-inverters |
| Item Dimensions | H: 135 / L: 554 / W: 254 (Weight: 11340) |
| Package Dimensions | H: 222 / L: 610 / W: 343 (Weight: 15672) |
| unit |
Description
Inverter Specification
Rated Continuous power:7000W
Surge output power: 14000W
Standby input power: 7000W<70W
DC Input Voltage : 48V
DC input voltage range:40~60VDC
High battery shut down:60V
Low voltage shut down: 40V
AC output voltage (nominal): 120VACand 240VAC
AC output frequency:60±2Hz
AC output waveform: Pure sine wave

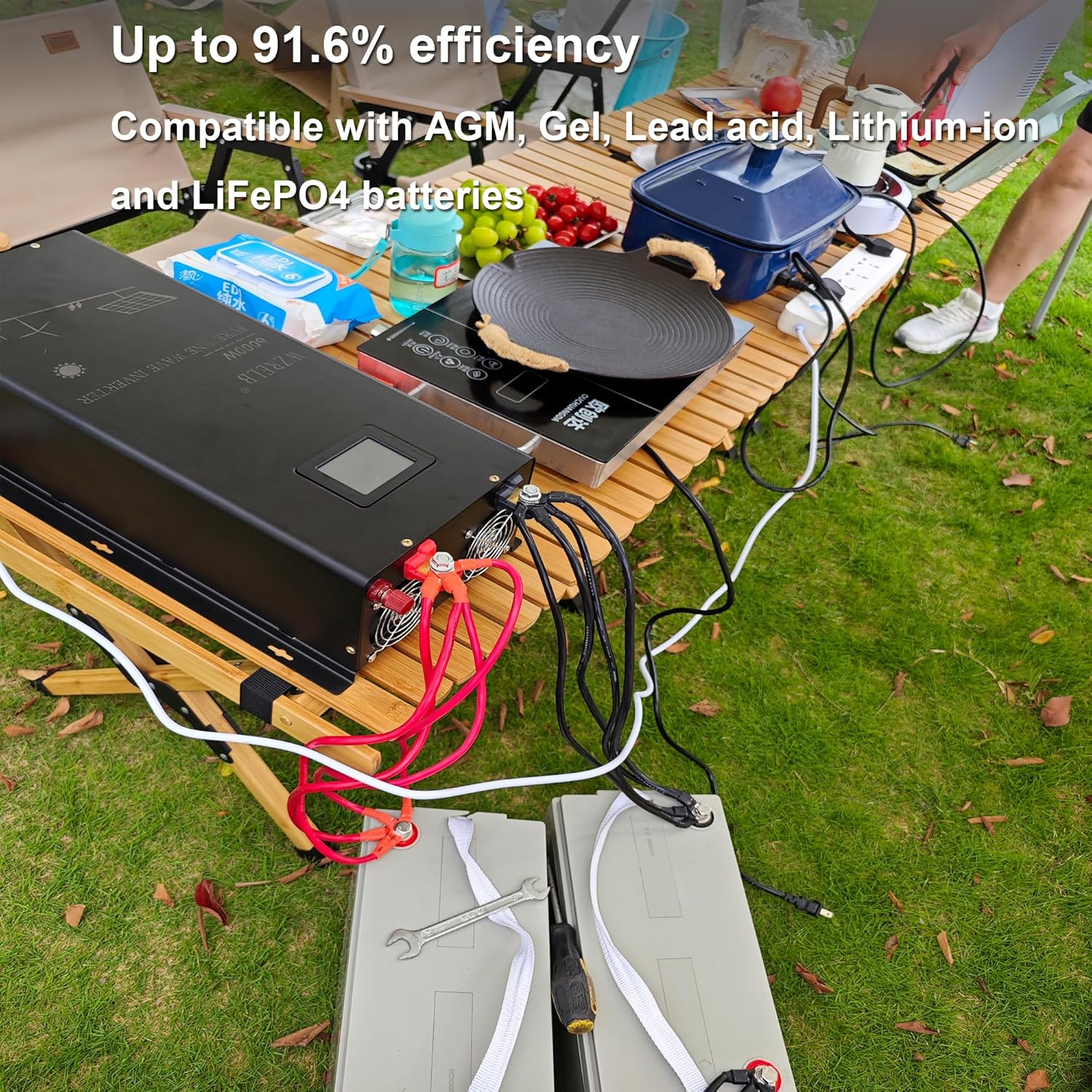

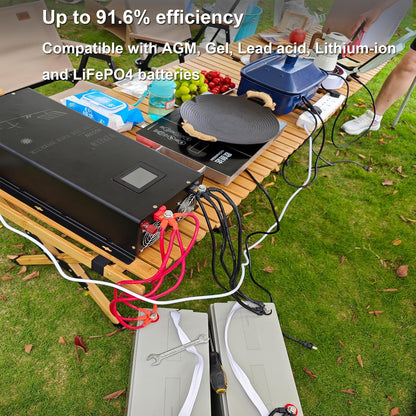

Conversion efficiency: ≧91.6%
Ambient operating temperature range: 32℉-104℉/0℃-70℃
Cooling method:Intelligent temperature controlled fan or the load power reaches to the half of the inverter power
Protection: Input low voltage protection, Input high voltage protection, overload protection, temperature protection, short circuit protection, battery reverse protection.
Packings: inverter, cable, fuse, manual,warranty card.
NOTE:The fuse is for the replacement of the fuse inside of the inverter as a backup. No need of change for usage in the first time.
