40A MEGA High Current Fuse (2 Count)
40A MEGA High Current Fuse (2 Count)
Regular price
$24.99
Sale price
$24.99
Regular price
Unit price
per
Shipping calculated at checkout.
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
Sub total
$24.99Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Description
Description
Key Features
- Product: ANM fuses, bolt auto fuses, time delay (slow blow), current 40A, 32V DC, replaces MEGA/AMG fuse.

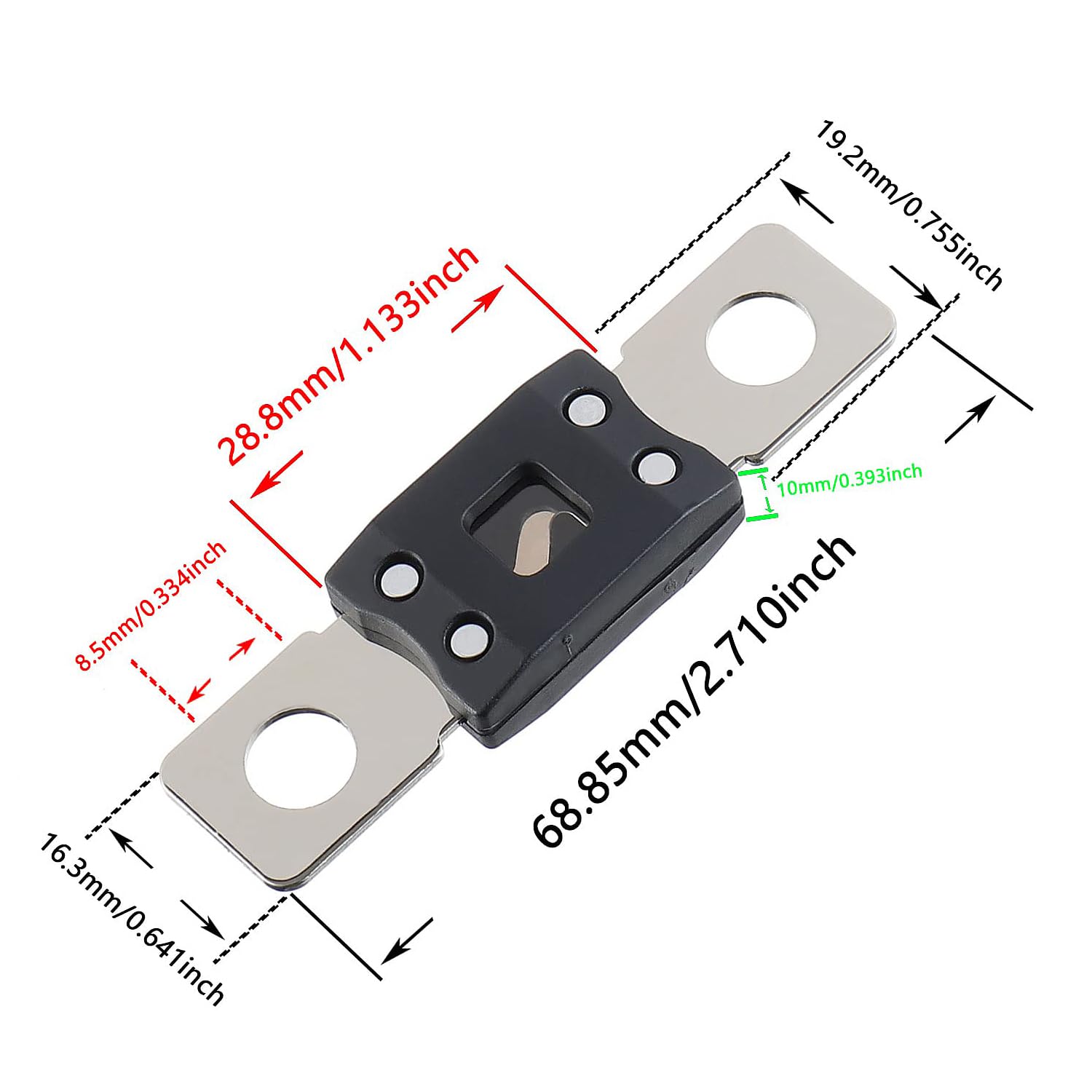

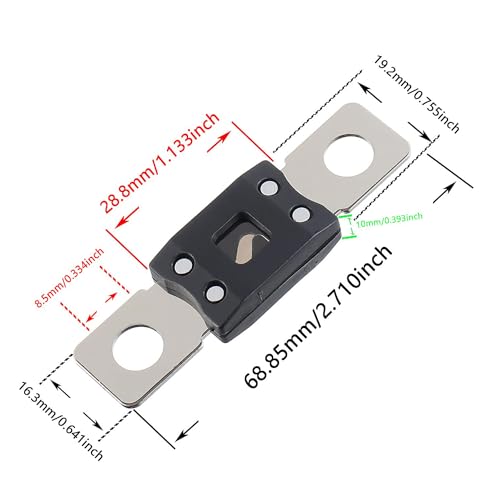

- Dimensions: 68.85 x 19.2 x 10 mm (L*W*H); Hole Spacing: 50.8mm; Hole Diameter: 8.5mm (M8)

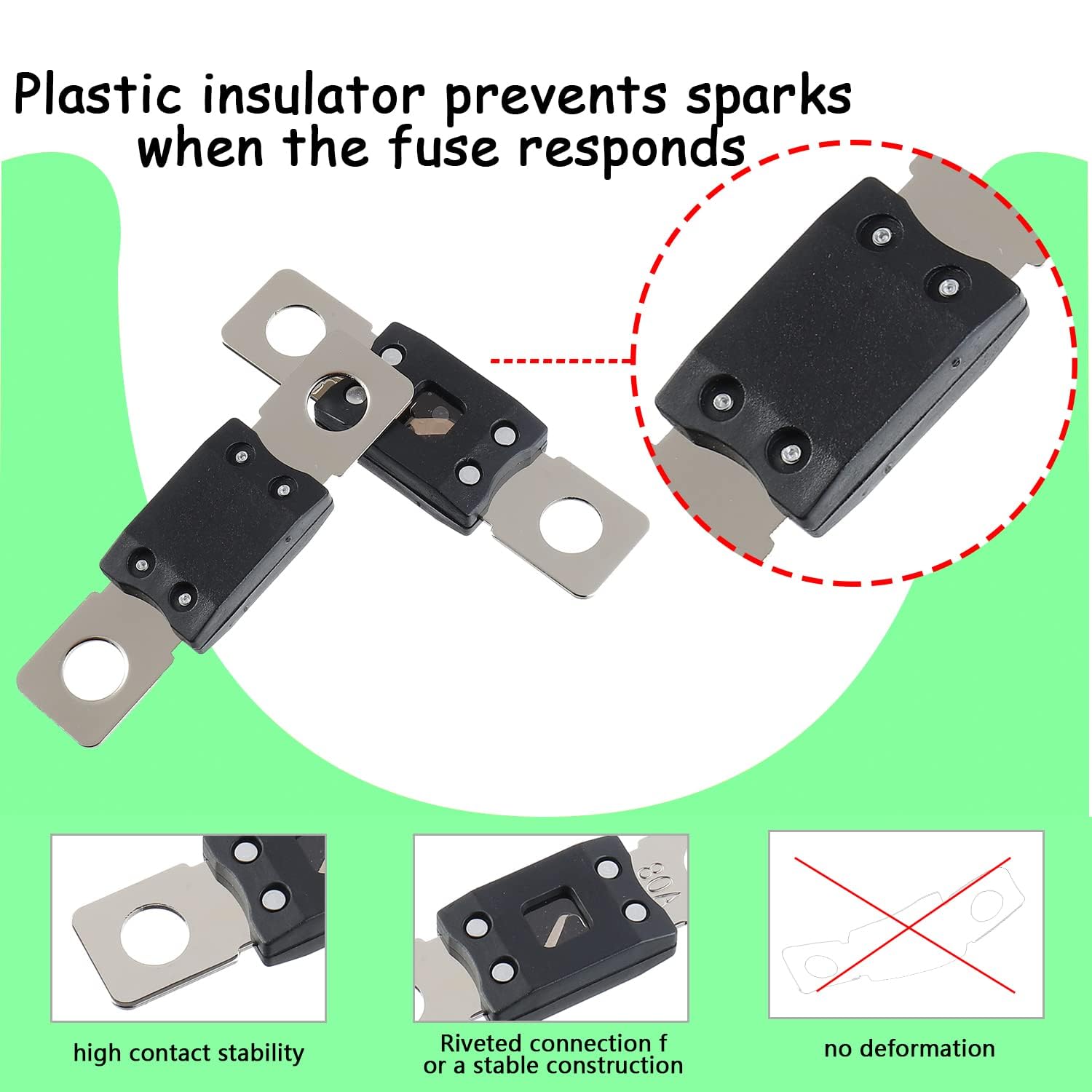

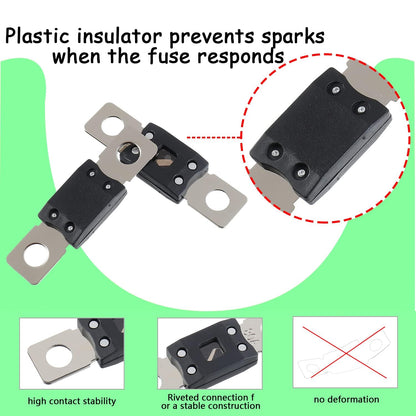

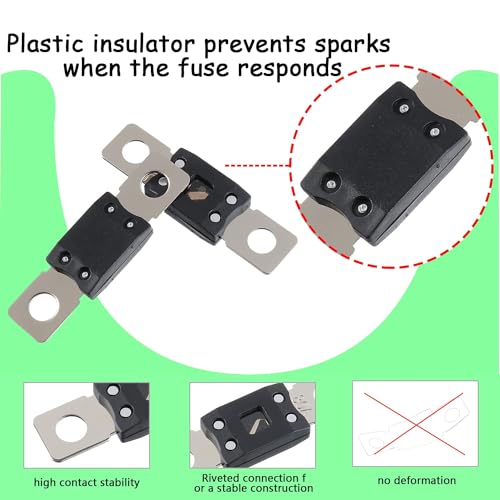

- Material: Copper alloy with integrated tin-plated heat sink. Riveted connection for a stable construction. Plastic insulator prevents sparks when the fuse responds.
- Function: Overload and short circuit protection. ANM car fuses provide time delay characteristics.
- Application: ANM bolt-on fuses are used in cars, trucks, agricultural machinery, construction vehicles, buses and caravans.
Specifications
| Brand | SIGANDG |
| Manufacturer | SIGANDG |
| Model | MEGA40A |
| Material | Copper |
| Color | Black |
| Style | 40A |
| Product Type | FUSE |
| Included Components | fuse |
| Item Type Keyword | automotive-fuses |
| Package Dimensions | H: 15 / L: 85 / W: 70 (Weight: 18) |
| unit | 2 Count |
Description

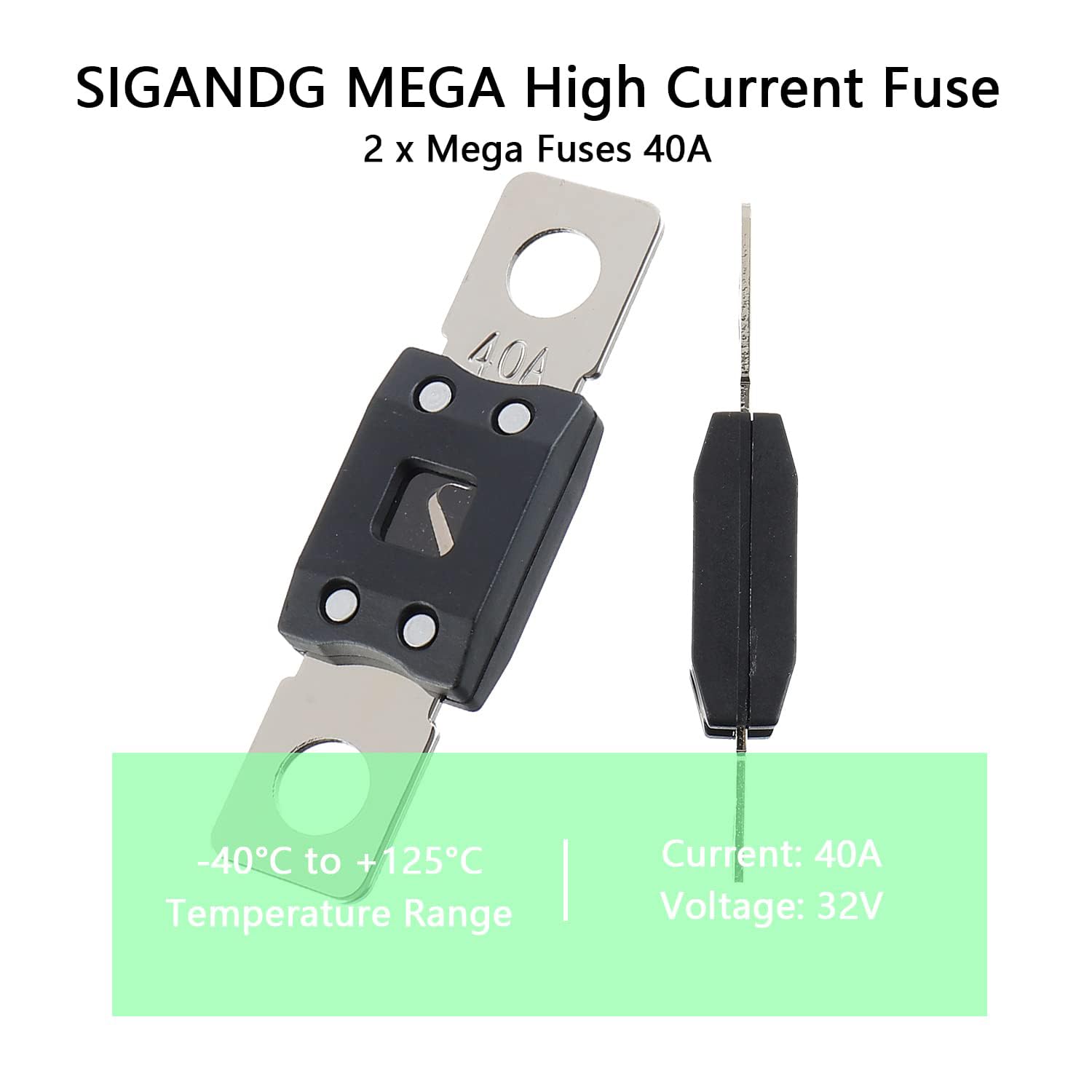

SIGANDG MEGA High Current Fuse Bolt-on Fuse AMG Fuse
Type: Mega Fuse
Current: 40A
Voltage: 32V
Temperature Range: -40°C to +125°C
Standard: ISO 8820-5, RoHS
Advantage: high contact stability, no deformation, high safety
Match: can use with MEGA/ANM fuse holders
Function ＆ Application:
Used for overload and short circuit protection in high current circuits.
Suitable for use as a fuse on the battery cable of voltage converters and inverters
or even charge controllers with high charging currents. Installation:
ANM Fuse can be installed on battery and alternator protection application
and other heavy gauge cables requiring ultra-high current protection.
Package List:

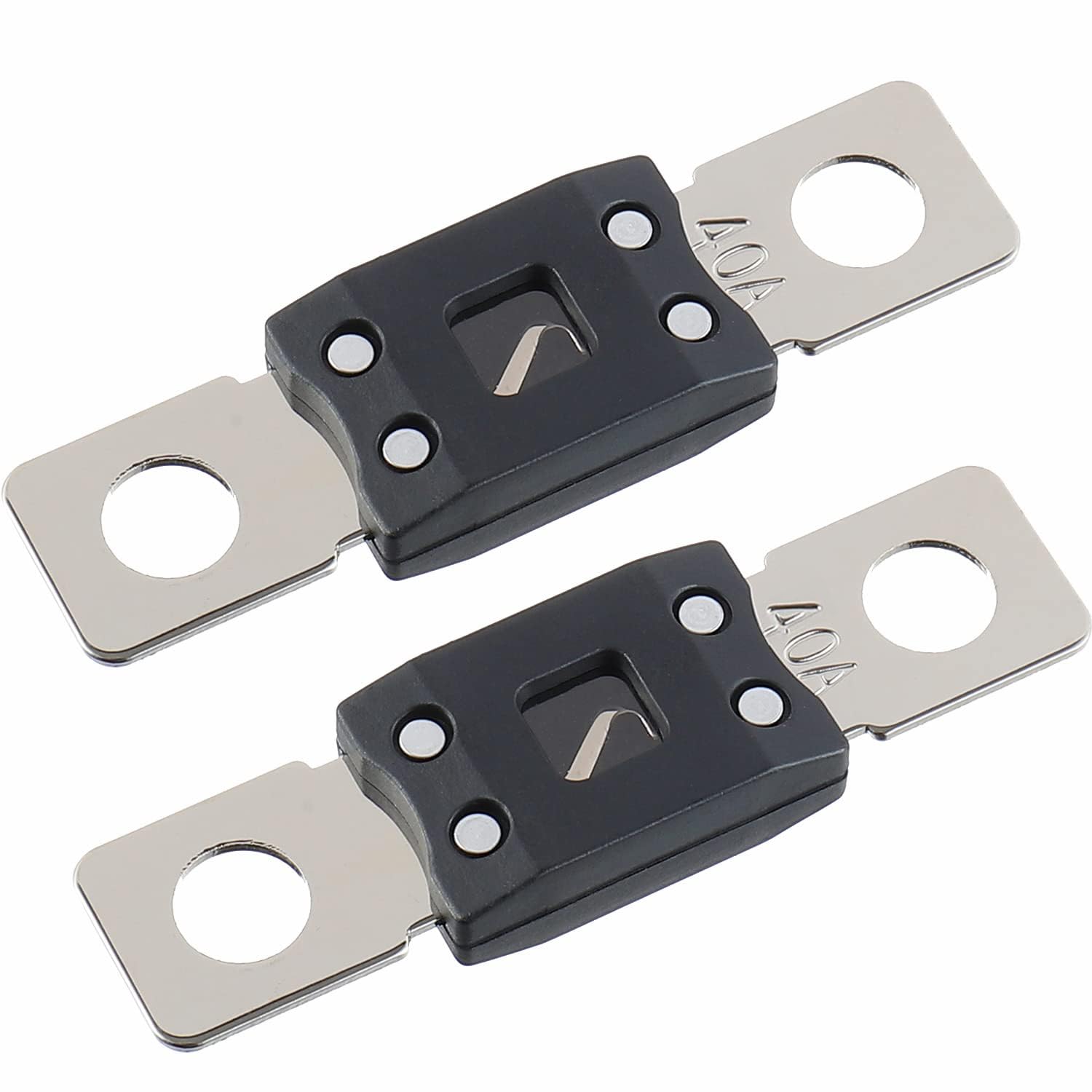

2 x Mega Fuses 40A
