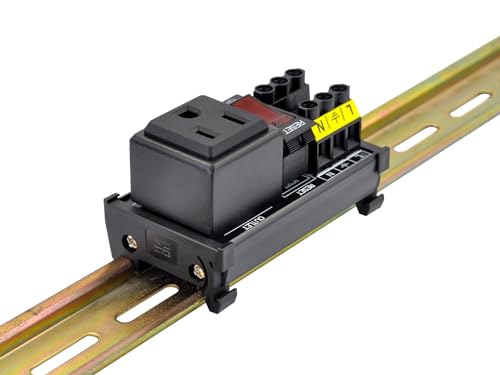

DIN Rail Mount AC 120V NEMA 5
DIN Rail Mount AC 120V NEMA 5
Regular price
$61.99
Sale price
$61.99
Regular price
Unit price
per
Shipping calculated at checkout.
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
Sub total
$61.99Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Description
Description
Key Features

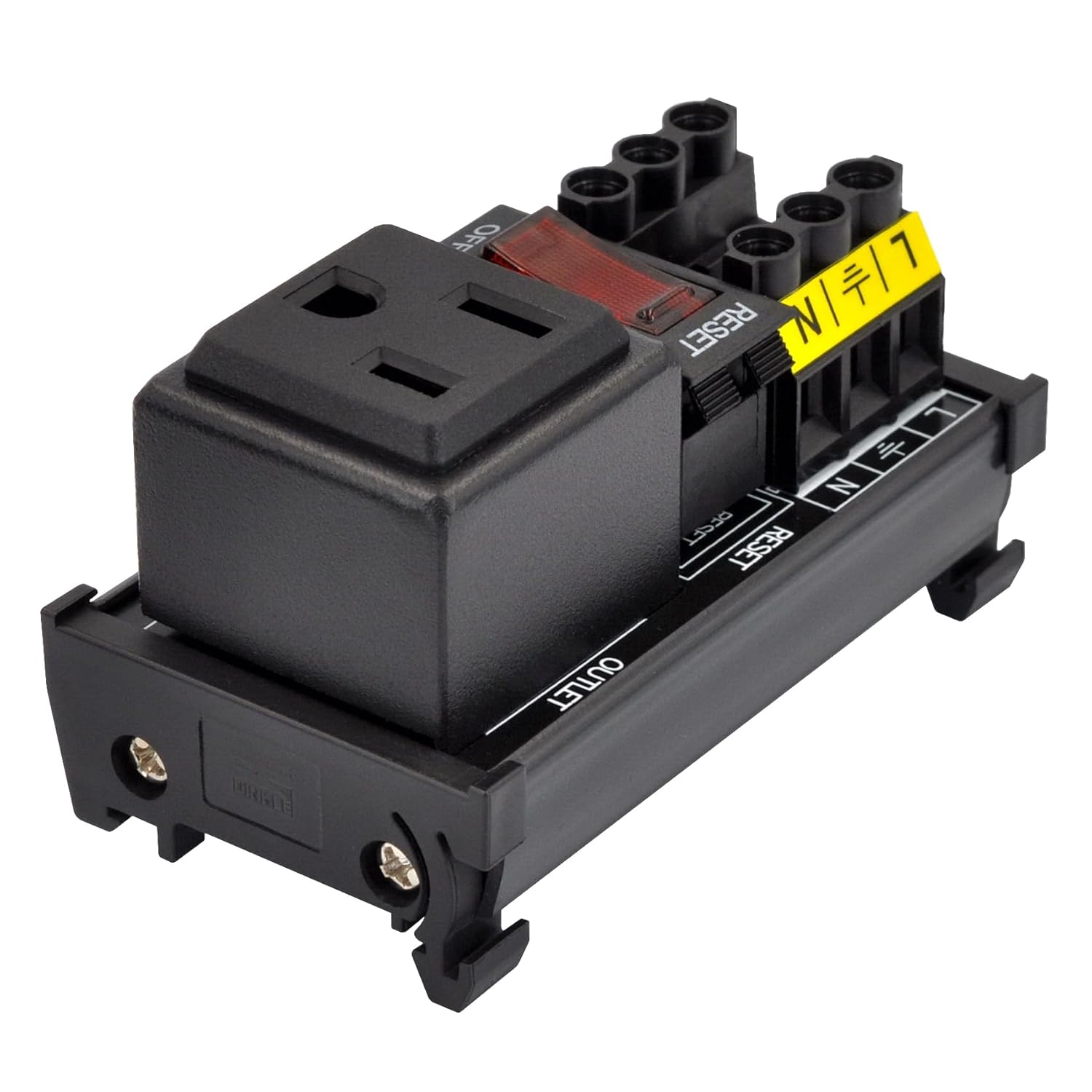

- Outlet: 3-prong grounded NEMA 5-15R AC receptacle. Reinforced AC receptacle to ensure stability.
- Working voltage AC 120V. Receptacle rated current 15 Amps.

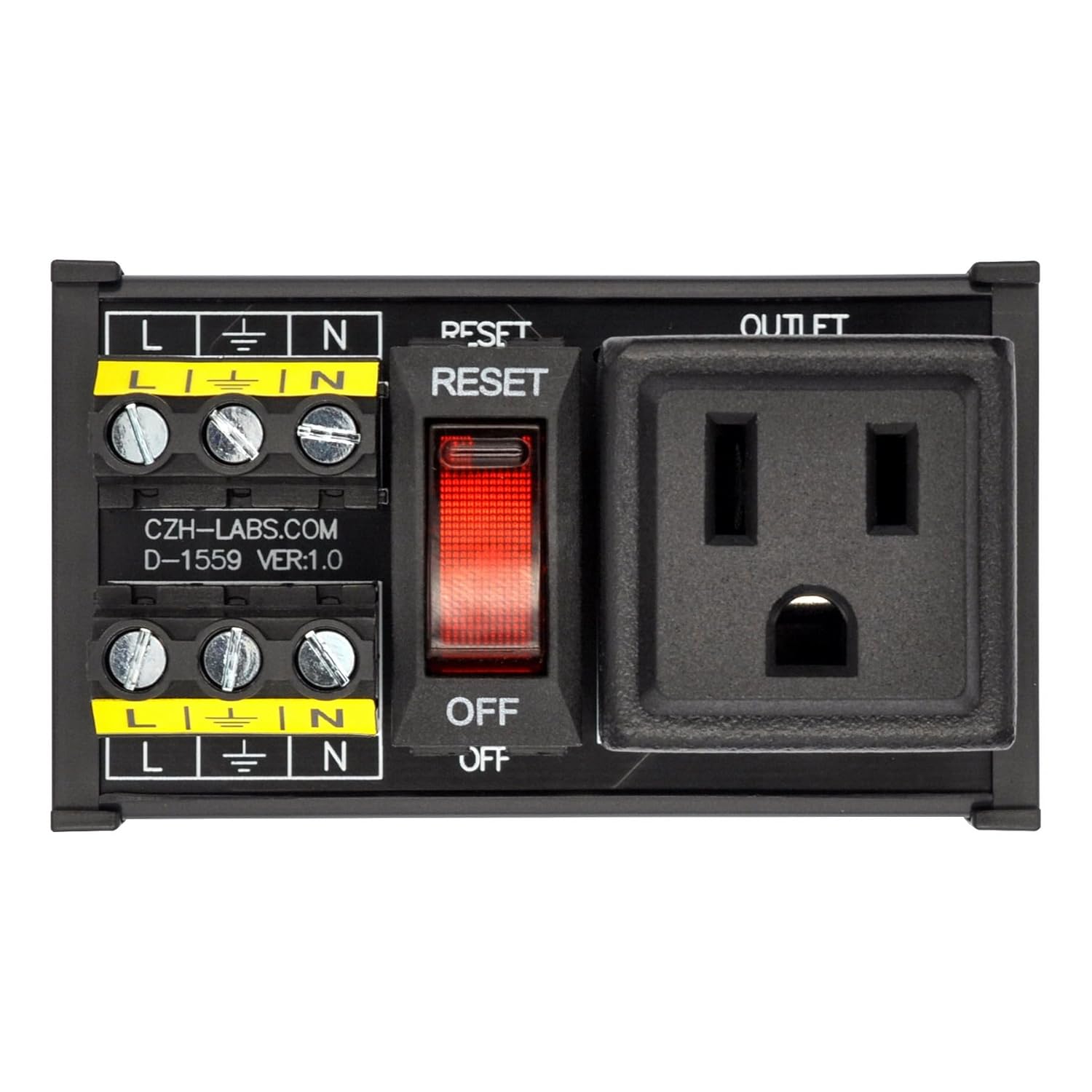

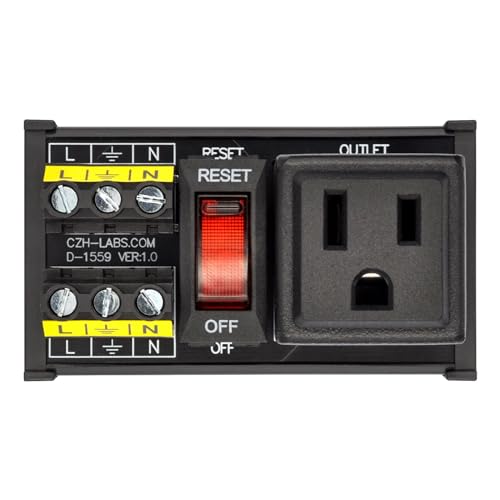

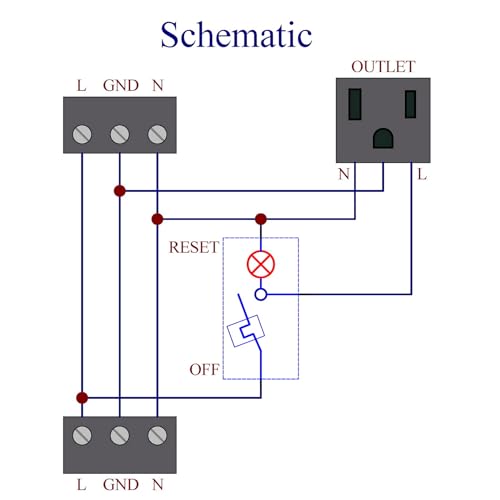

- Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.

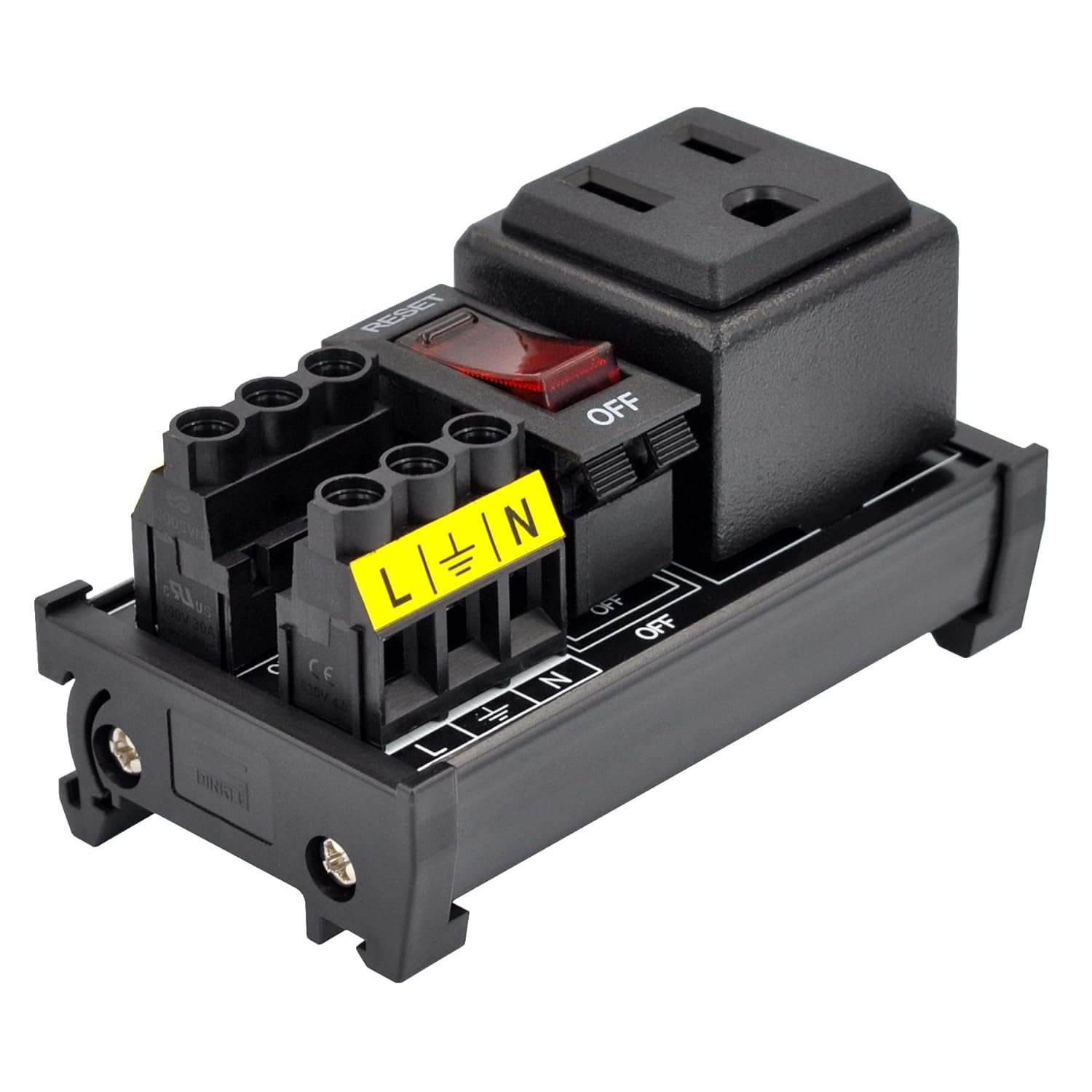

- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.

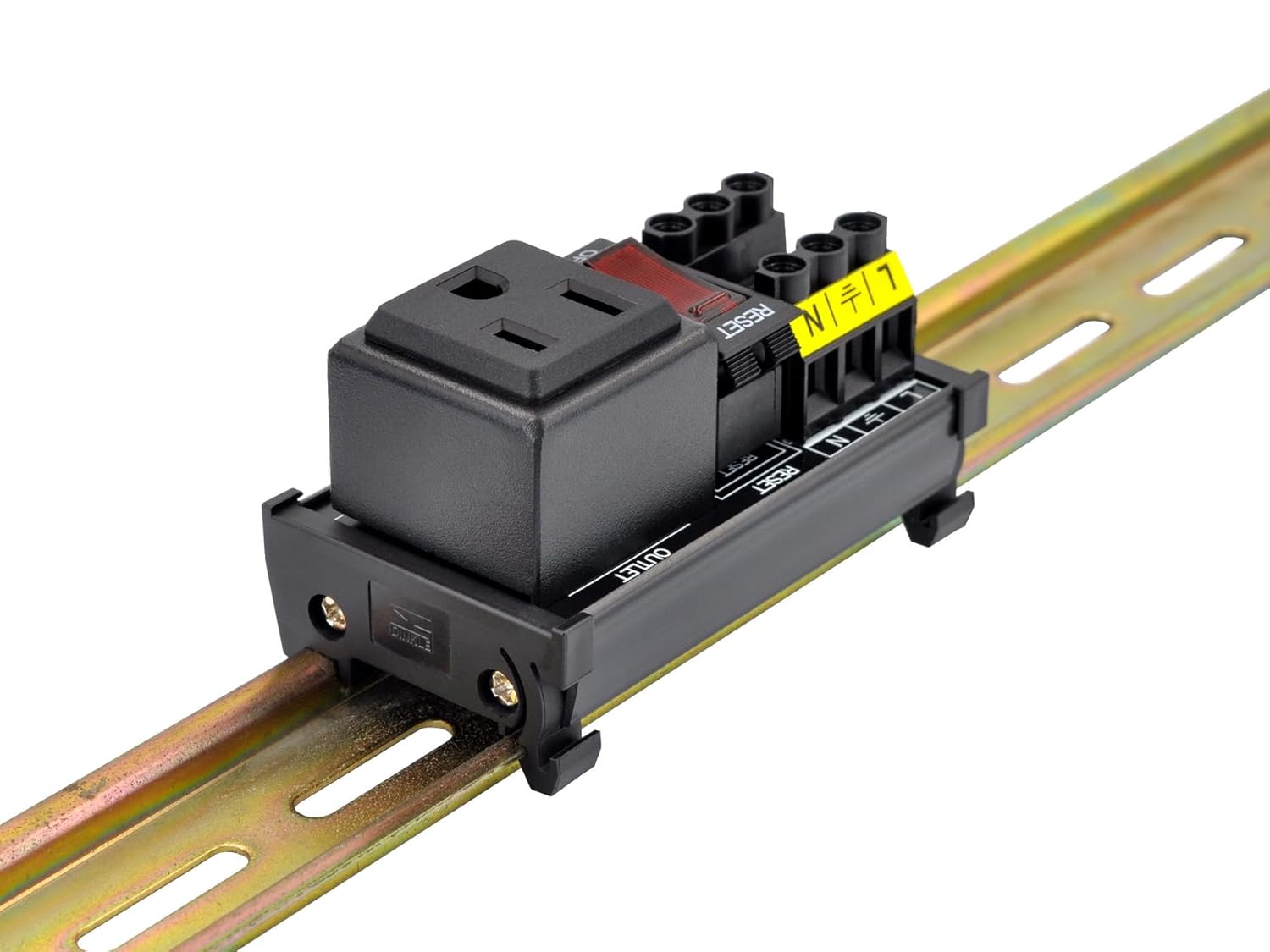

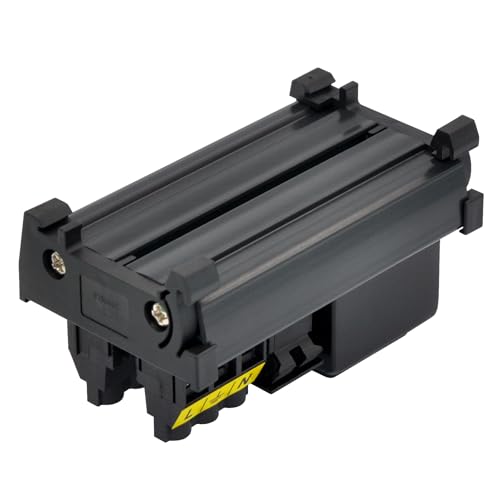

- DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
- UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
Specifications
| Brand | OONO |
| Manufacturer | CZH-LABS |
| Model | D-1559T |
| Material | Copper |
| Color | black |
| Product Type | POWER_STRIP |
| Special Features | ['On And Off Switch'] |
| Item Type Keyword | electrical-outlets |
| Item Dimensions | H: 3 / L: 279 / W: 64 |
| Package Dimensions | H: 53 / L: 101 / W: 61 (Weight: 141) |
