DIN Rail Mount AC 120V NEMA 5
DIN Rail Mount AC 120V NEMA 5
Regular price
$224.99
Sale price
$224.99
Regular price
Unit price
per
Shipping calculated at checkout.
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
Sub total
$224.99Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Description
Description
Key Features

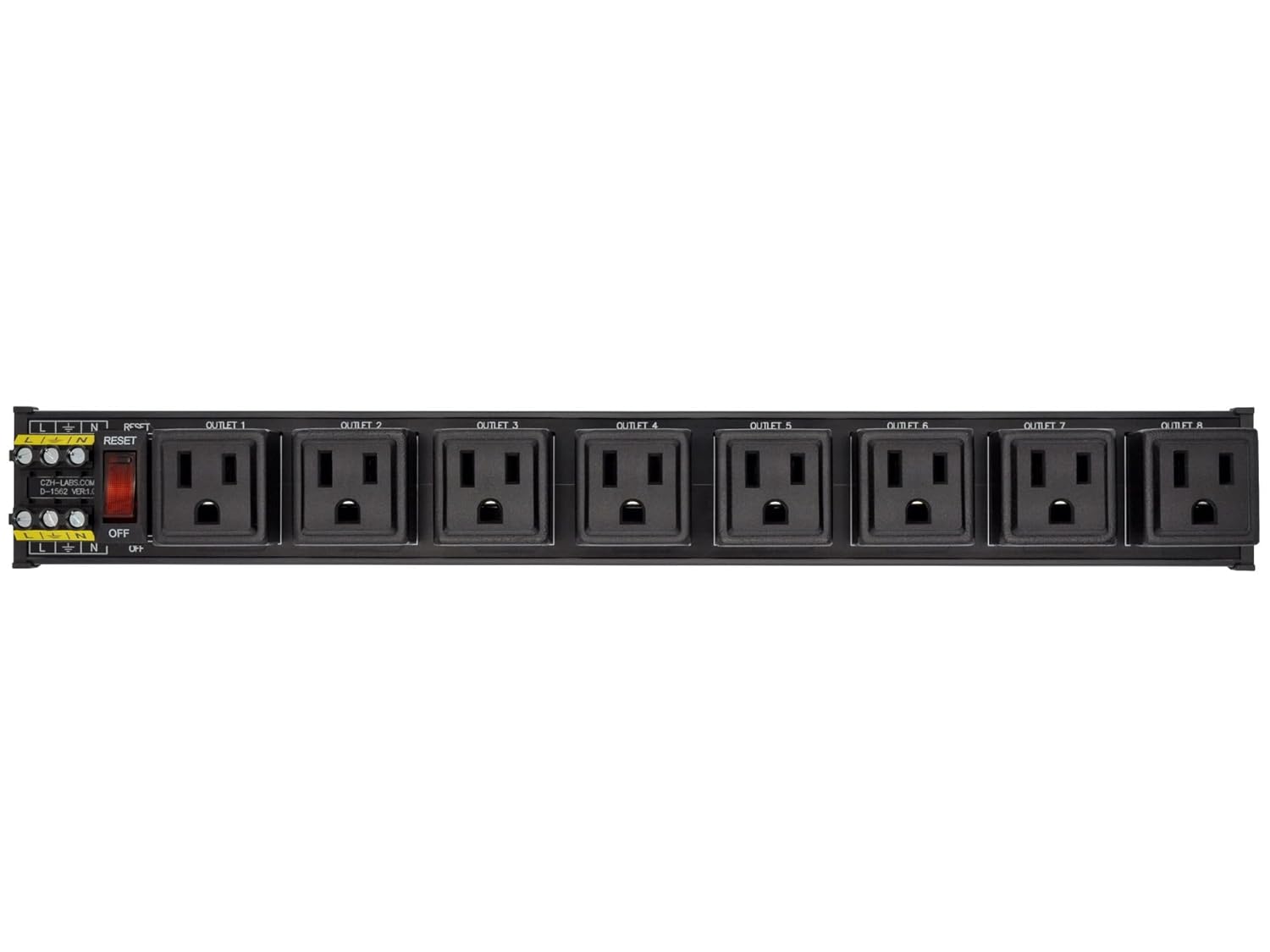

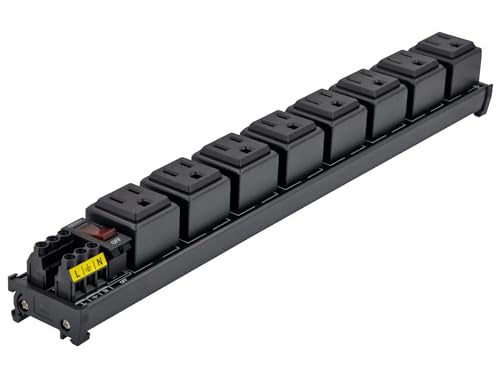

- Outlet: eight 3-prong grounded NEMA 5-15R AC receptacles. Reinforced AC receptacle to ensure stability.
- Working voltage AC 120V. Single receptacle rated current 15 Amps. Total receptacles output rated current 15 Amps (limited by overload protector rated current).

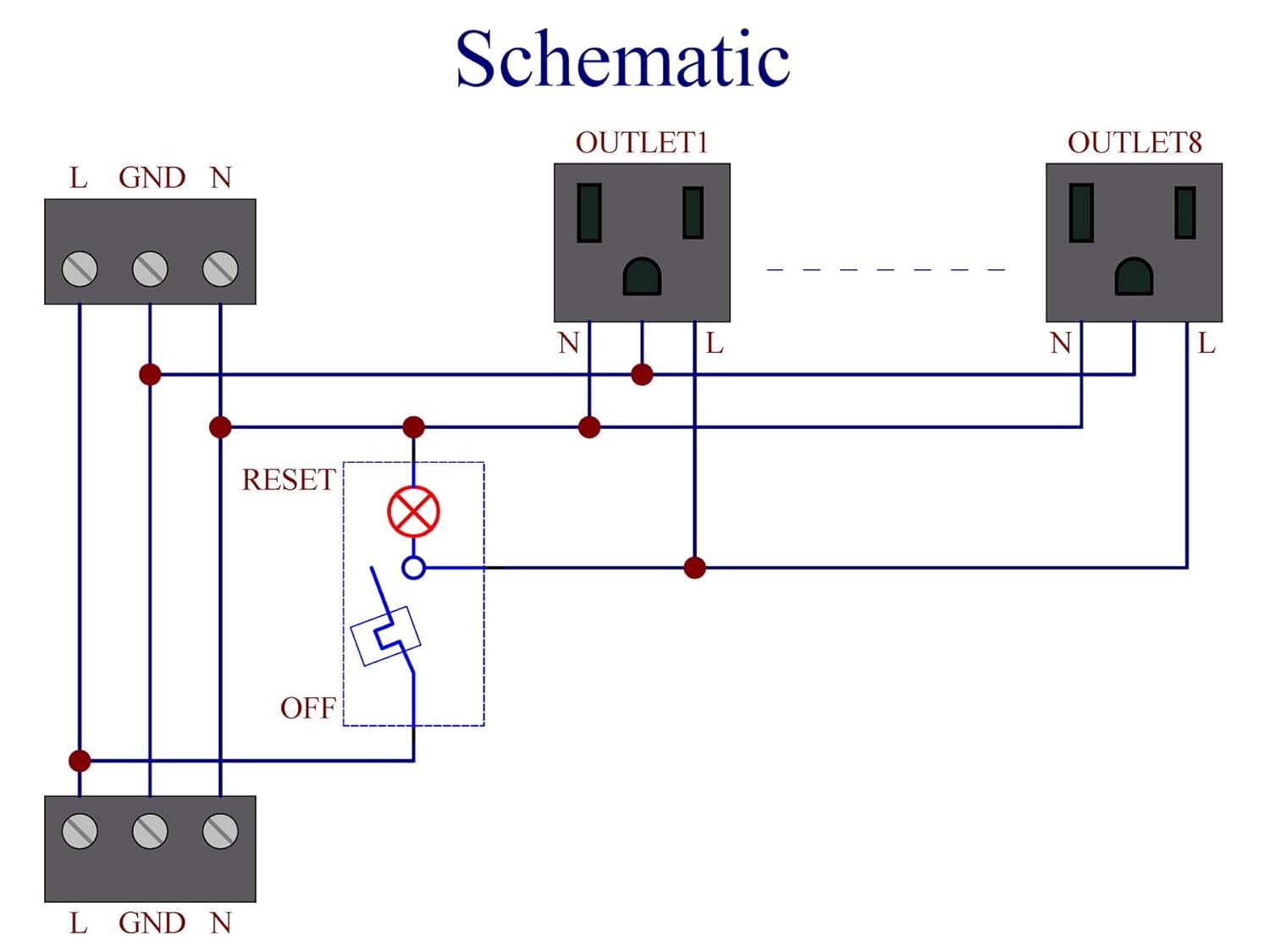

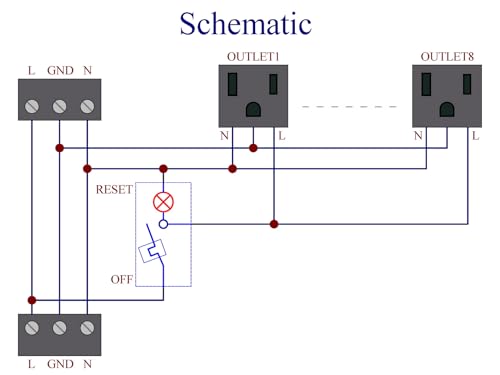

- Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.

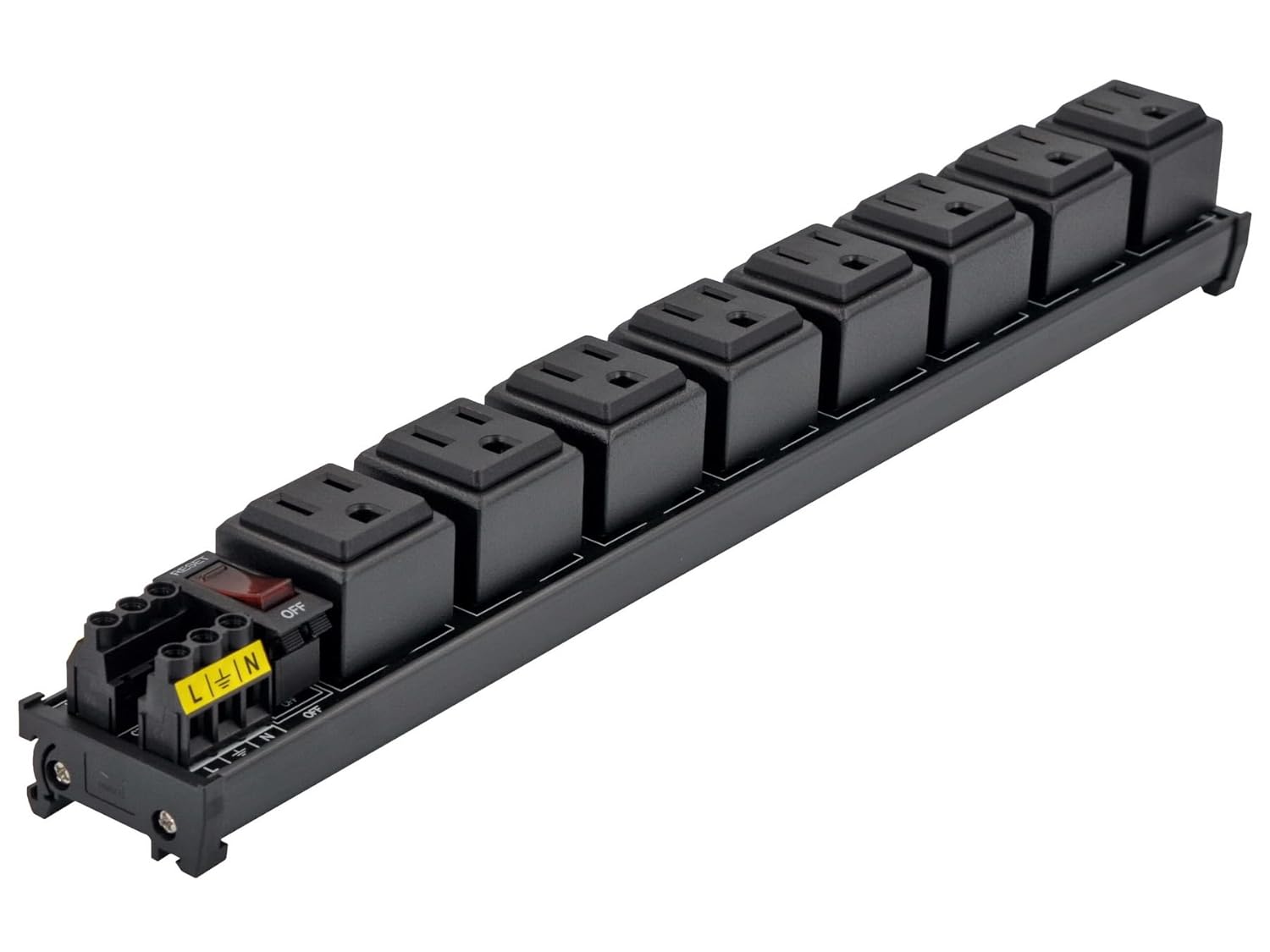

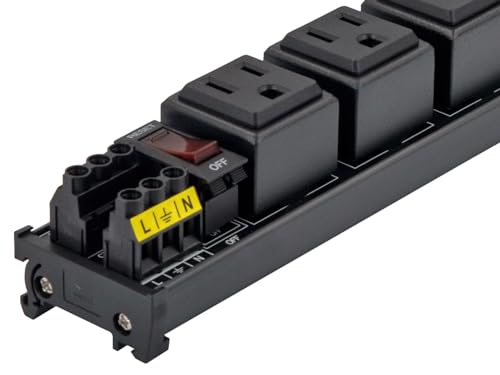

- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.

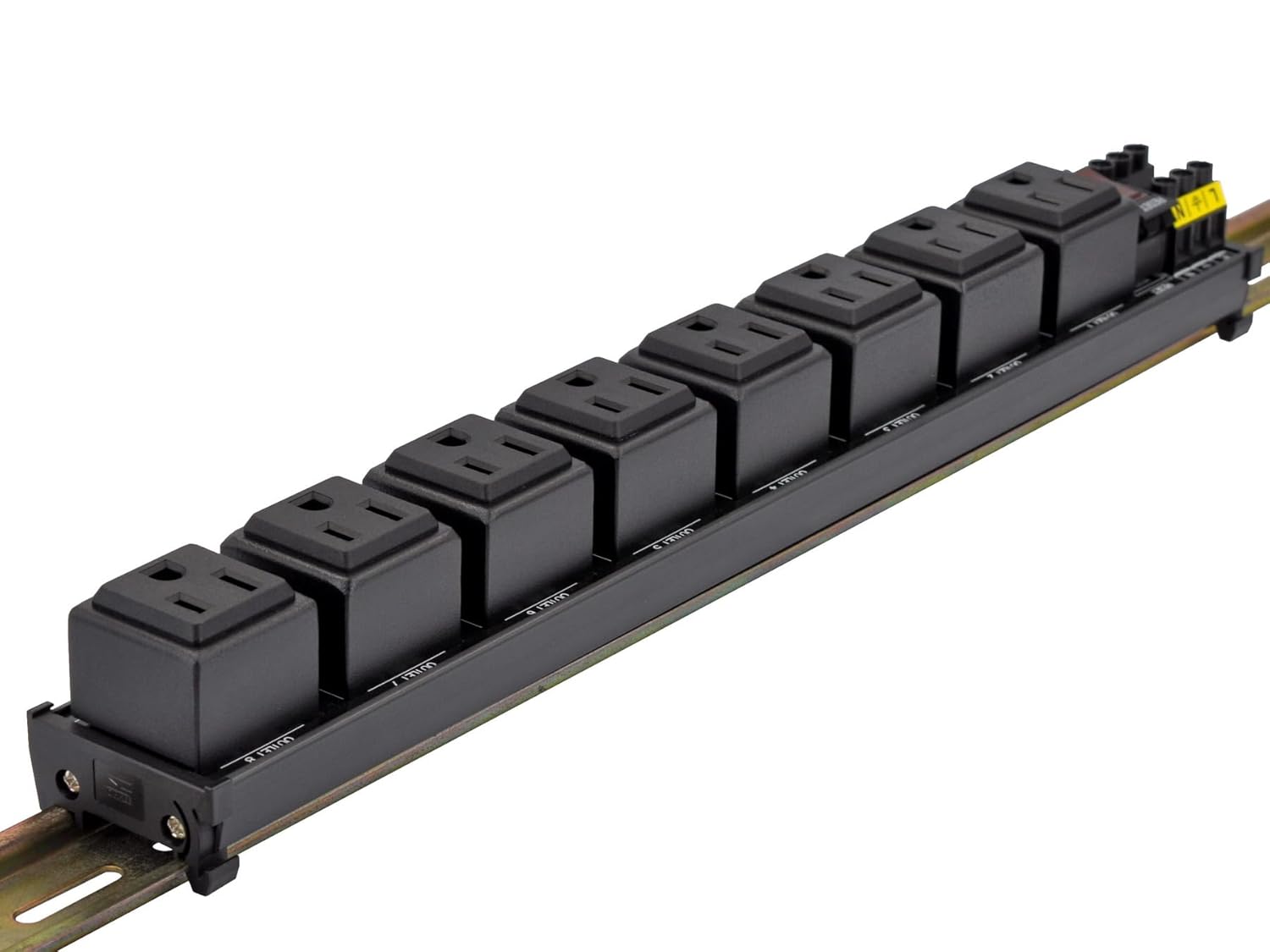

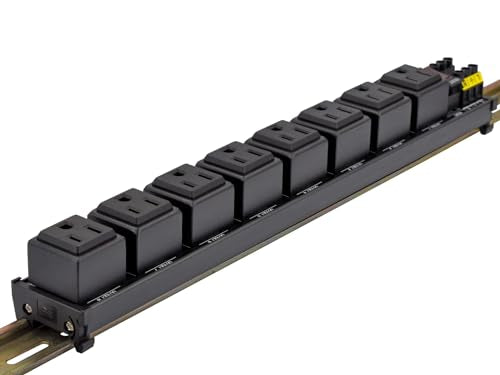

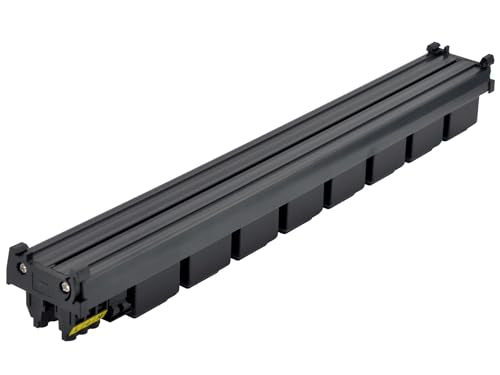

- DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
- UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
Specifications
| Brand | OONO |
| Manufacturer | CZH-LABS |
| Model | D-1562T |
| Material | Copper |
| Color | Black |
| Size | 26~10 AWG |
| Product Type | POWER_STRIP |
| Special Features | ['Overload Protection', 'Mountable'] |
| Item Type Keyword | electrical-outlets |

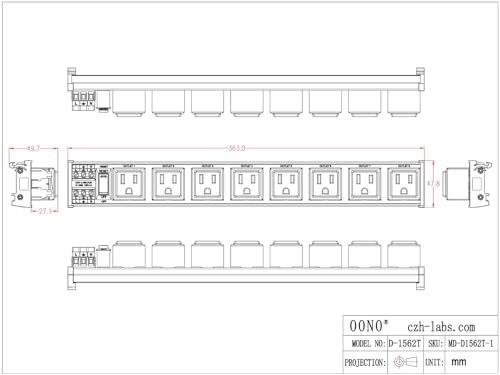

| Package Dimensions | H: 54 / L: 396 / W: 68 (Weight: 440) |
