50 Amp EV Charging Receptacle

Key Features

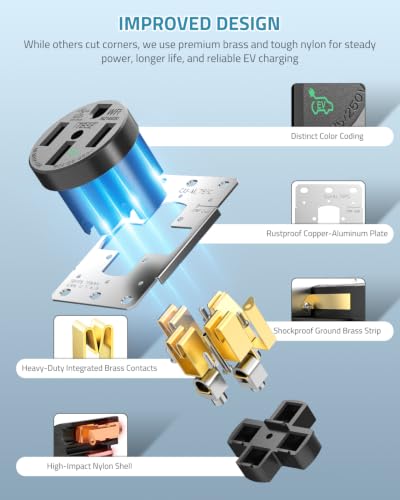

• Weatherproof Wall Plate Receptacle Kit: PAULINN NEMA 14-50WR receptacle kit comes with a rust-resistant 304 stainless steel faceplate. It is designed for high-power devices, and dedicated to EV charging, industrial, commercial, and residential use, and is UL certified. Constructed from high-strength nylon and flame-retardant thermoplastic, it resists UV aging under extreme temperatures ranging from -40°C to 75°C.

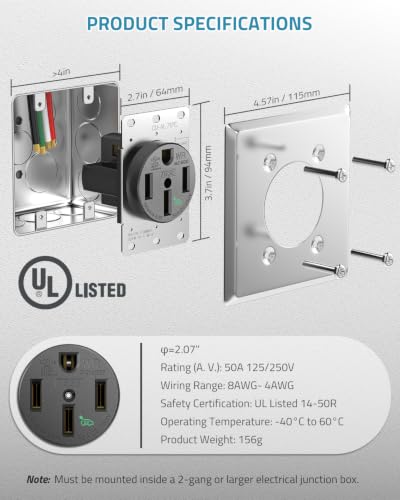

• High Power Performance: The NEMA 14-50WR receptacle is rated 50 Amps, 125/250 Volts. It supports continuous 40A output and peak 50A output to deliver efficient and safe charging, especially ideal for electric vehicles and heavy-duty equipment. 3-pole, 4-wire design enables safe grounding and stable operation for worry-free power supply to high-load equipment.

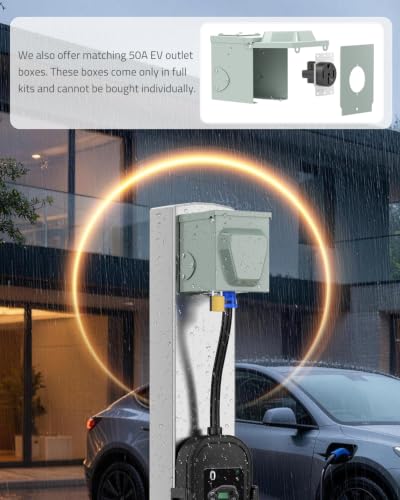

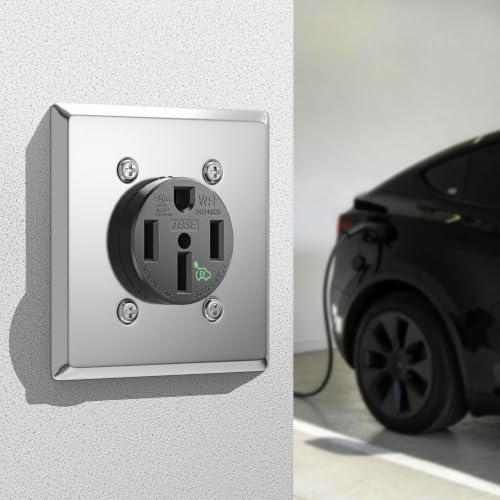

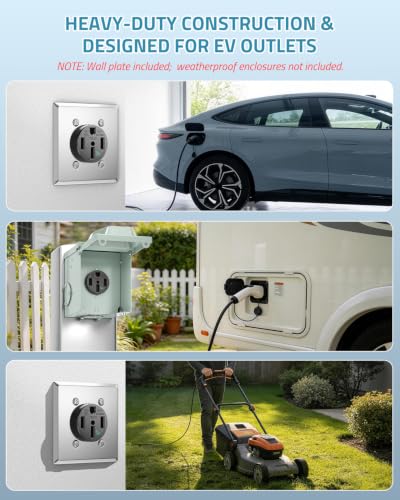

• Weatherproof Construction: Made of weather-resistant materials for indoor and outdoor installation, perfectly suited for outdoor charging stations and RV campgrounds. The recessed mounting design enables installation within standard wall boxes, saving space while ensuring safety and delivering a clean, professional look.

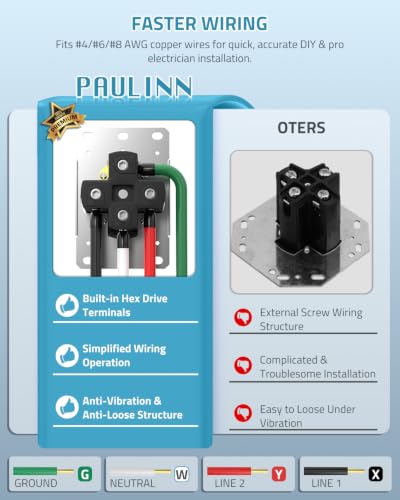

• Wire Gauge Compatibility: Accepts #6 to #4 AWG solid copper wires. Industrial thick brass terminals guarantee stable contact, reduce risks of poor connection and fire hazards, and enable lossless current transmission. Terminal screws require an installation torque of 75 in-lbs for secure connections.
• Secure & Lockable: Lockable design improves safety; suitable for residential premises, campgrounds, and public charging stations.

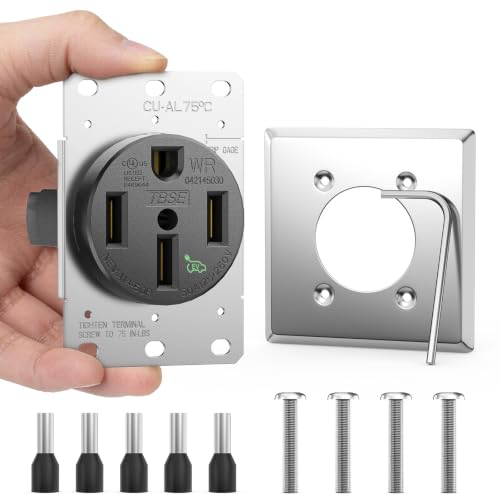

• Note: Must be mounted in a 2-gang or larger electrical box. (2 Gang: double-width, which can accommodate two standard switches or receptacles side by side (approx. 4 inches wide).
