Macpherson Spring Compressor Tool

Key Features

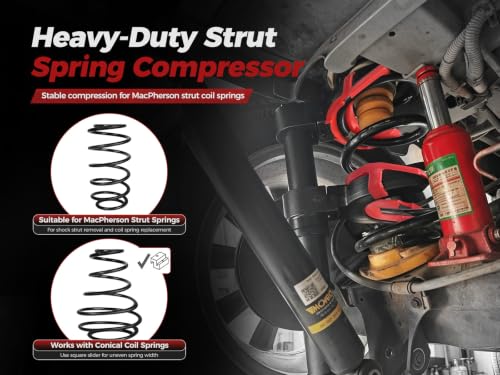

• 【MacPherson Strut Spring Compressor】This strut spring compressor tool compresses coil springs to assist with strut, spring, top mount, and bearing seat removal or installation. Broad opposing fork jaws help keep the load centered and the spring evenly supported. For conical springs, use the included square spacer as needed to accommodate different upper and lower coil diameters

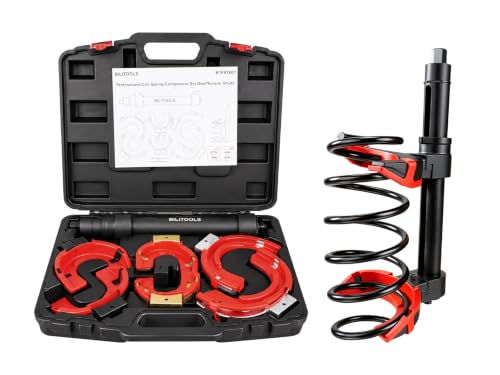

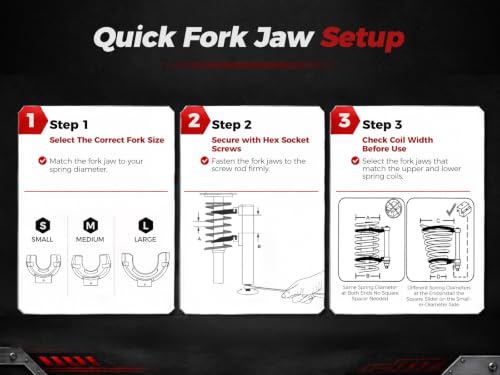

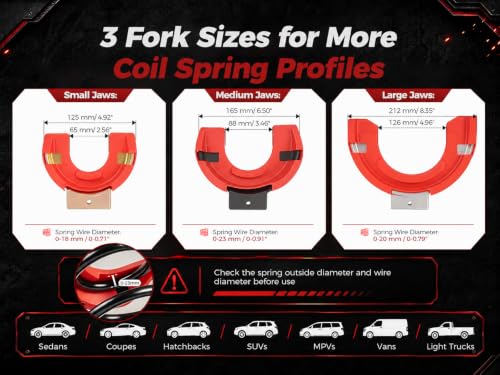

• 【3 Fork Jaw Sizes & Complete Kit】Three interchangeable fork-jaw pairs accommodate different coil spring sizes, covering spring outside diameters of Ø2.6–4.9 in (65–125 mm), Ø3.4–6.5 in (88–165 mm), and Ø4.9–8.3 in (126–212 mm). Includes 6 protective sleeves, 1 threaded compression rod, 1 square spacer, and 6 socket-head cap screws

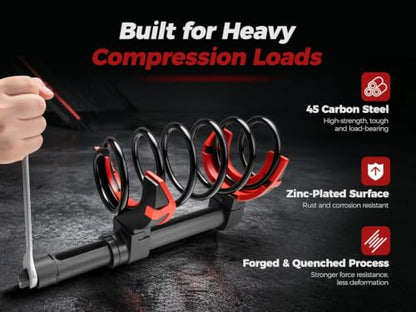

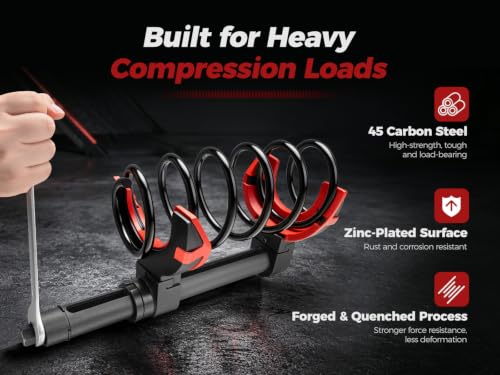

• 【Forged Heavy-Duty Spring Compressor】The fork jaws are one-piece forged from 45 steel and heat-treated to resist deformation under load. The assembled tool provides a maximum load capacity of 5,512 lb with one fork pair installed. Smooth, burr-free edges and red protective sleeves help reduce scratches on the spring surface
• 【Check the Winding Direction Before Ordering】Before ordering this automotive spring compressor, place the upper coil end at 12 o’clock and follow the first coil turn. This version fits clockwise-wound springs; choose the left-hand variant for counterclockwise-wound springs. Driver-side and passenger-side springs may diffe

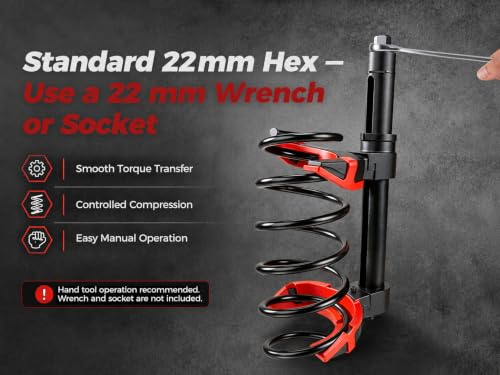

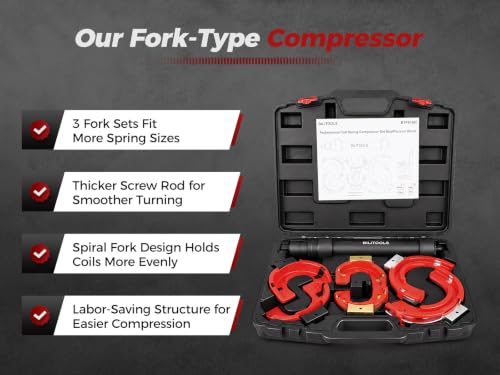

• 【Controlled Operation & Organized Storage】Operate the spring compression tool with a standard 22 mm wrench or socket for steady, controlled compression; hand-tool operation is recommended. The carrying case keeps all components organized. Inspect and lightly lubricate the threads before use. Wrench and socket are not included

Specifications
